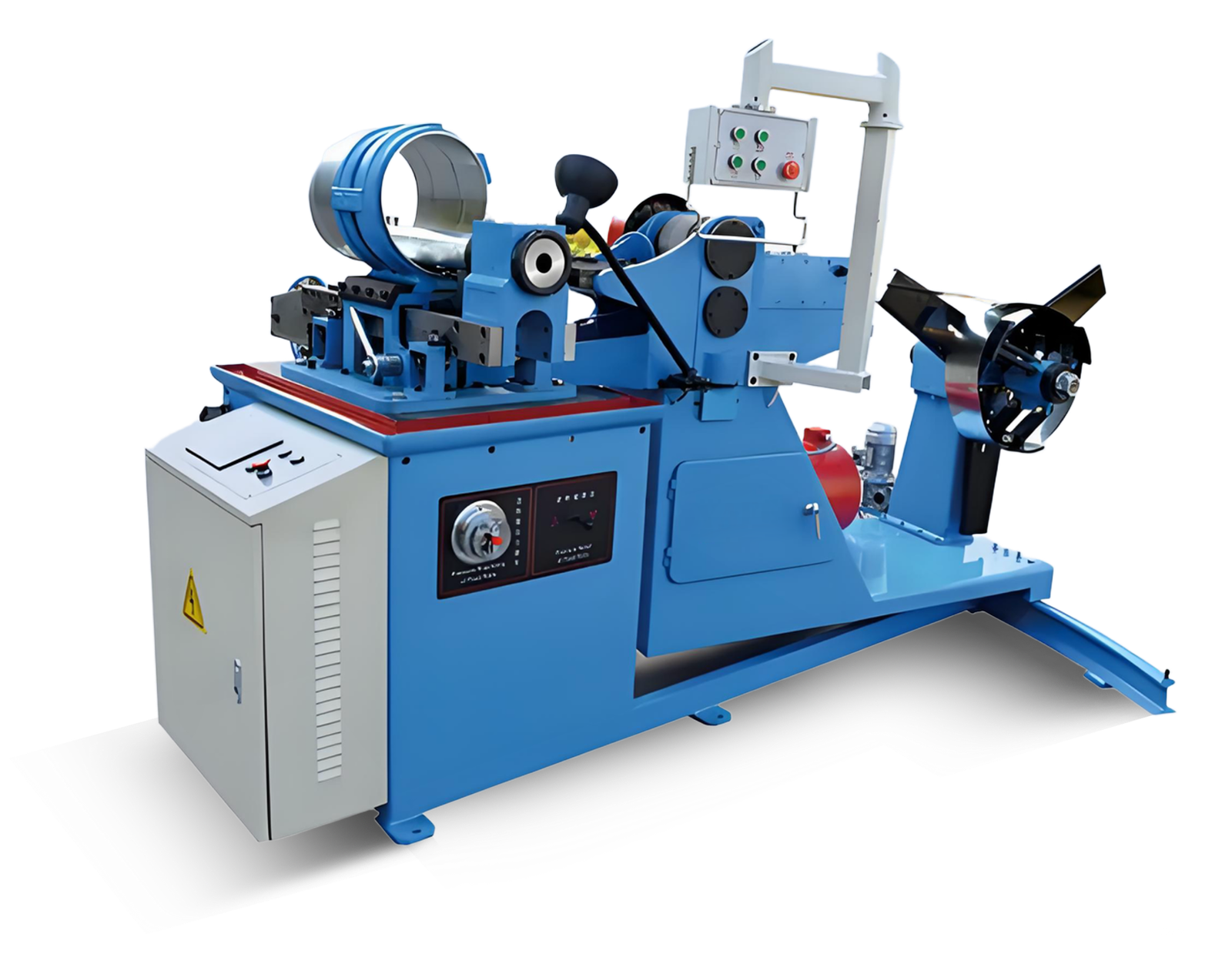

Spiral Duct Machine
FEATURES
An automated spiral duct machine integrating feeding, rounding, edge biting, and fixed-length cutting, capable of efficiently processing metal plates into spiral ventilation ducts, suitable for batch production of ducts in ventilation and smoke exhaust systems. An automated spiral duct machine that integrates feeding, rounding, edge biting, and fixed-length cutting, efficiently processing metal plates into spiral ventilation ducts, suitable for batch production of ducts in ventilation and smoke exhaust systems.
Main Technical Parameters
| Technical Parameters | Parameter |
|---|---|
| Diameter Range | Φ100-Φ1600mm |
| Thickness Range | Galvanized Plate:0.5-1.2mm Stainless Steel:0.4-1.0mm |
| Material Width | 137mm |
| Uncoiler | Vertical type, Max Load:1200kg |
| Sealing & Locking | Outer Surface Of ThePipe |
| Feeding Speed | 0-35m/min,Adjustable |
| Cutter | Rolling Type Cutting |
| Power System | Pneumatic Power For Cutting & Tuming Material Hydraulic Power For Discharge & Roller Compression |
| Forming Head Mold | Made Of Steel (Aluminum Alloy Casting Optional) |
| Total Weight | 2000kg |
| Equipment Sizes | Main Machine: 3.4×1.85×1.5 mm Discharge Rack:2.1×1.2×1.1 m |
| Total Power | 16KW |
| Power Supply | 380V/50Hz/3ph Other Power Supply Cptional |
| Control Console | Touchscreen |
