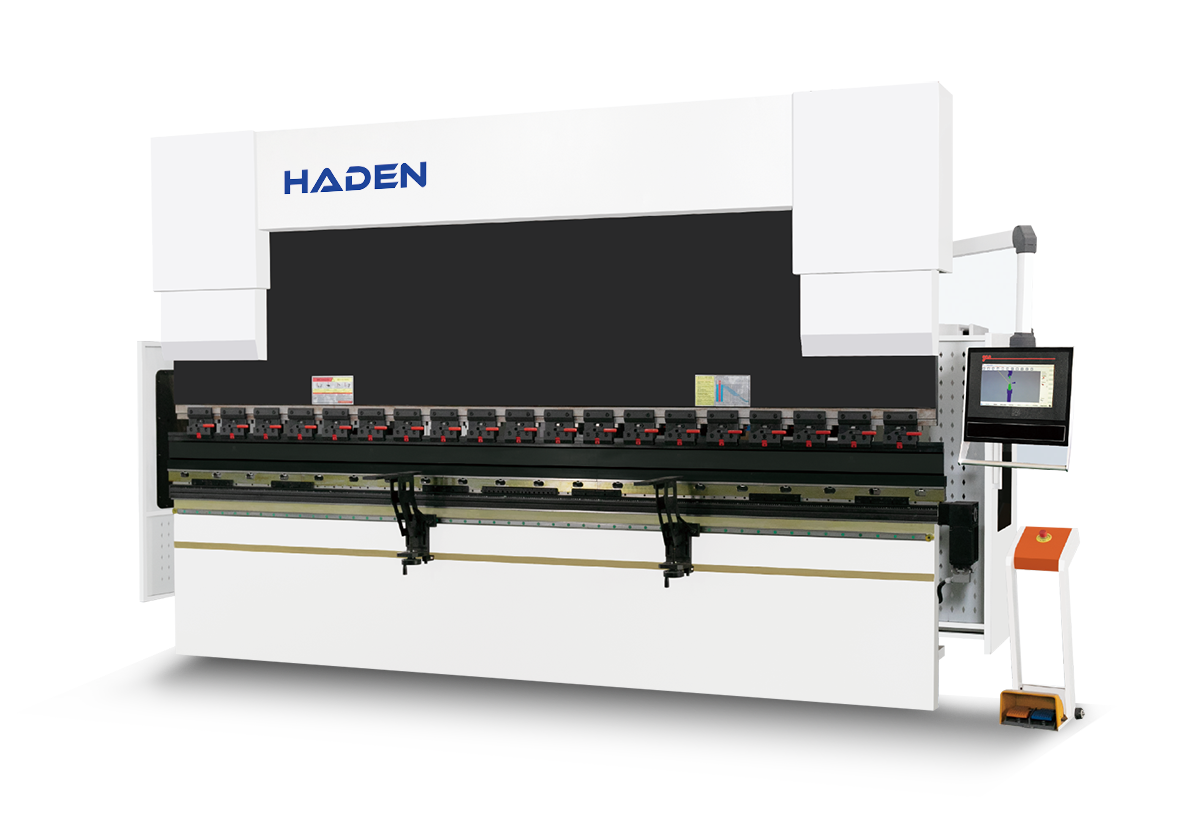

Sheet Metal Press Brake Machine
Hydraulic & CNC Press Brake Machines deliver precise, efficient, and reliable metal bending solutions for sheet metal fabrication. Built for high performance, durability, and advanced CNC control, they enhance productivity across a wide range of industrial applications.
Hydraulic & CNC Press Brake Machines in Bangladesh
In the modern sheet metal processing sector, a singular performance advantage is no longer sufficient to meet ever-growing comprehensive demands. For this reason, we proudly introduce our flagship CNC press brake, an embodiment of comprehensive excellence. It is not merely a technical aggregation, but a revolutionary product that deeply integrates the ultimate energy efficiency of pump-controlled servo systems, the intelligent control of electro-hydraulic servo systems, and the robust reliability of precision mechanical synchronization. This equipment aims to provide an impeccable solution for businesses striving for top-tier efficiency, absolute precision, and the lowest operating costs.

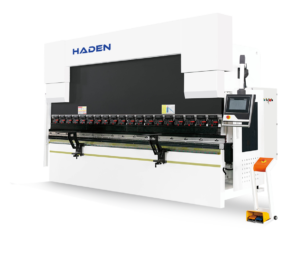

Economical NC Press Brake Machine
Simple Economical NC Press Brake Machine
NC Torsion Bar Synchronous Press Brake

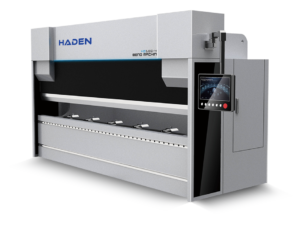

Servo Electric CNC Press Brake
Electro Hydraulic Servo CNC Press Brake
4-Column Hydraulic Press
Core - Configuration
Haden Machine supplies advanced Sheet Metal Press Brake Machine in Bangladesh, manufactured in China with reliable core components and proven CNC technology. Each press brake is designed for precise bending, stable performance, high productivity, and long-term industrial use, with local delivery, installation, technical support, and after-sales service across Bangladesh.

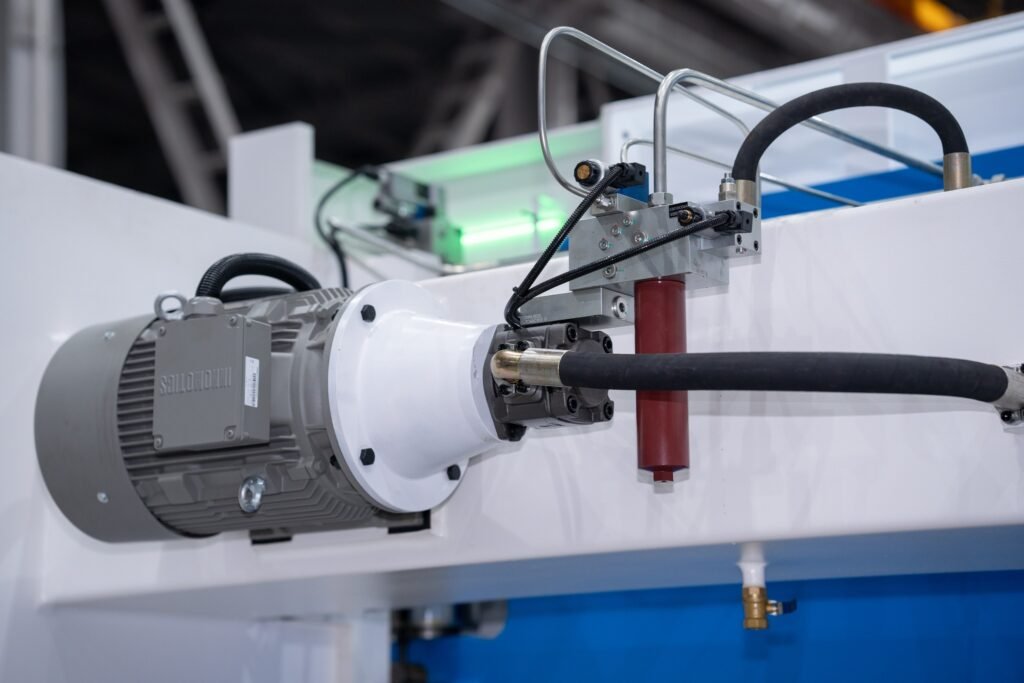

Oil pump motor (Optional)
Adopts a three – phase asynchronous motor and a large – flow pump as the hydraulic active power source.

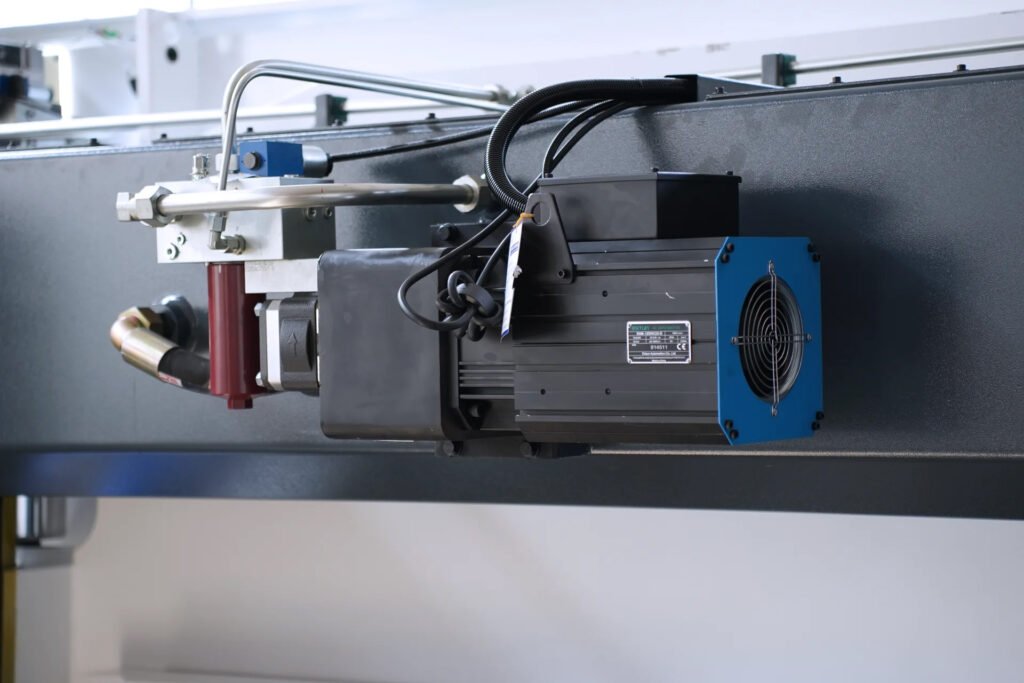

Servo motor (Optional)
- Using a servo motor as the main power source of the hydraulic pump can save about 40% of energy.
- The overall efficiency of the slider increases by about7-20%.
- Oil temperature can be reduced by about 10-20℃.

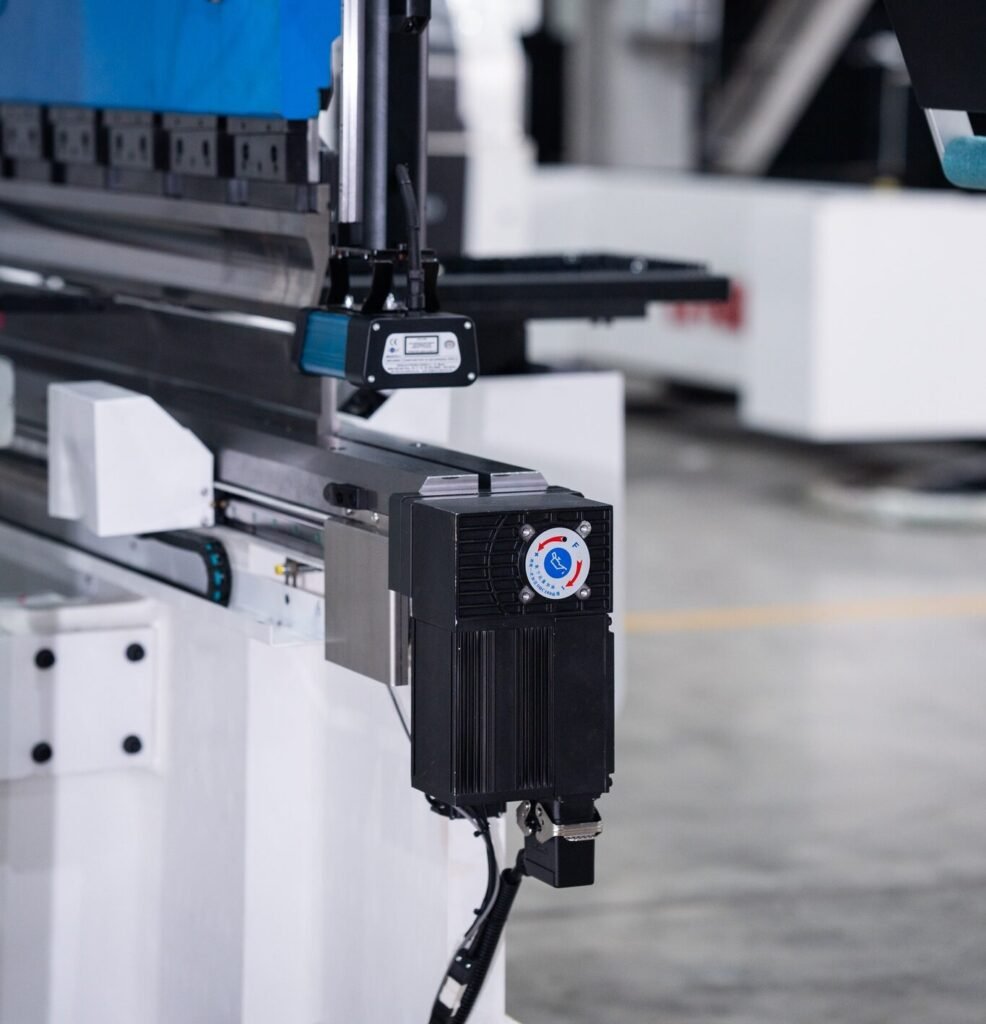

Mechanical compensation (Optional)
Provide comprehensive protection for the operator in places close to the workpiece.

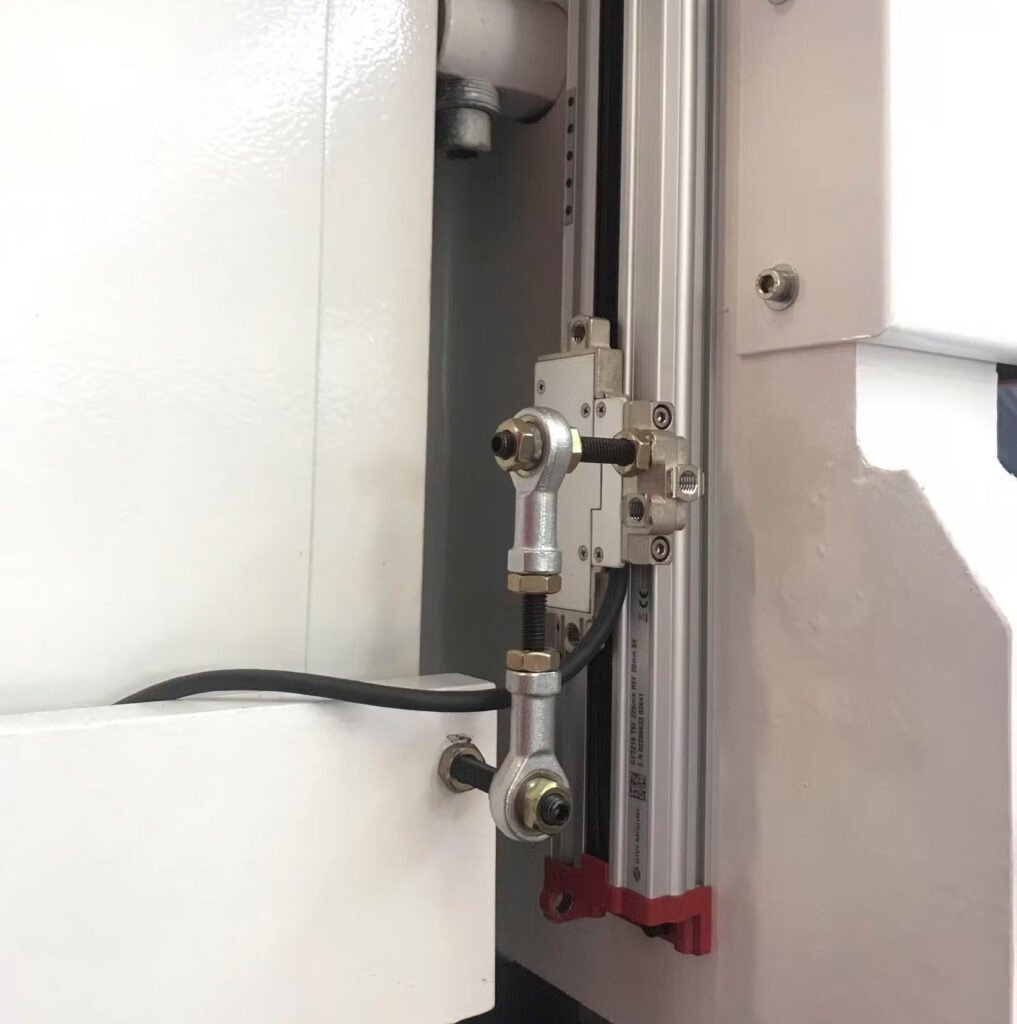

Grating ruler (Optional)
Accurately measure distortion and perform feedback compensation to ensure the precision of bending and effectively prevent non – standard workpieces from colliding with linear scales.

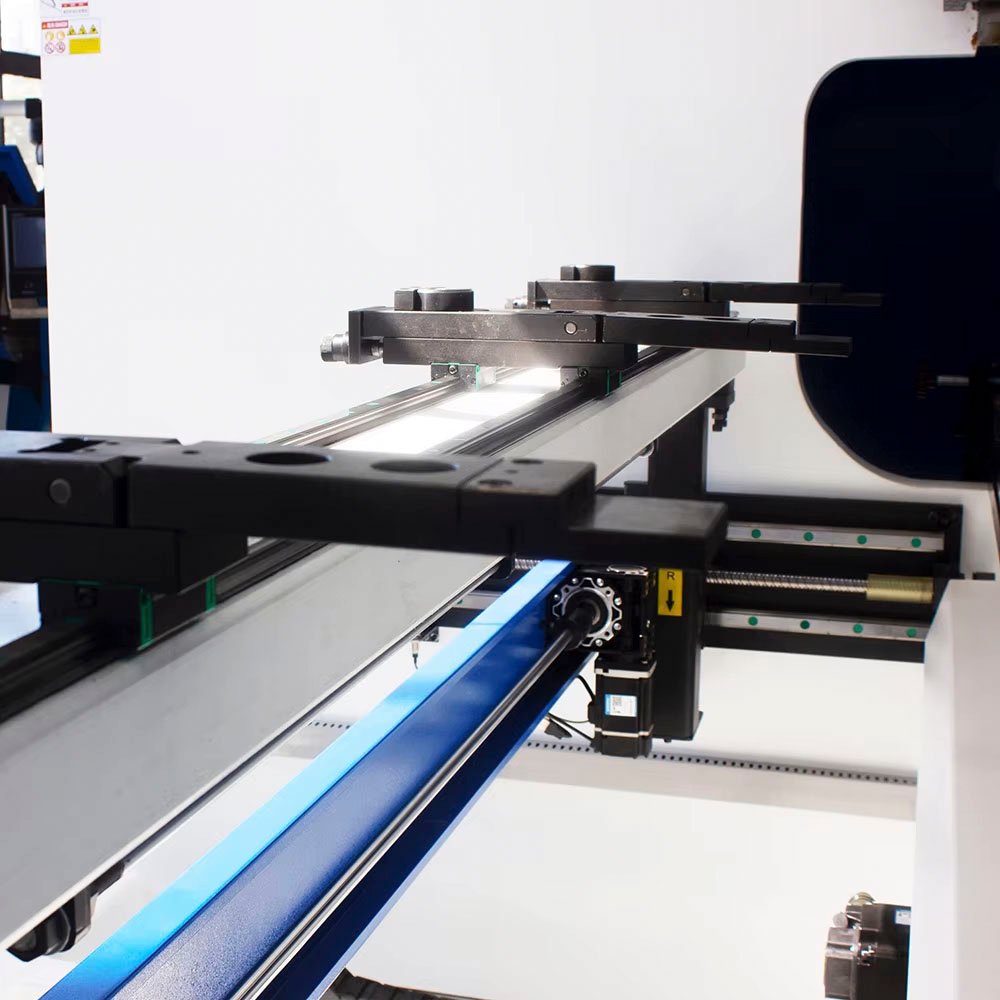

Backgauge
Precise back gauge system for fasterand more accurate positioning. With steel structure welding (providing high rigidity), and driven by servo motors, ball screws, and linear guides, it ensures the accurate positioning of the workpiece.
Premium Components for Press Brake Machines in Bangladesh
Built with reliable components from Schneider Electric, Bosch Rexroth, NOK and other trusted manufacturers, our press brake machines are designed for stable hydraulic performance, precise bending control and dependable operation for sheet metal fabrication businesses in Bangladesh.

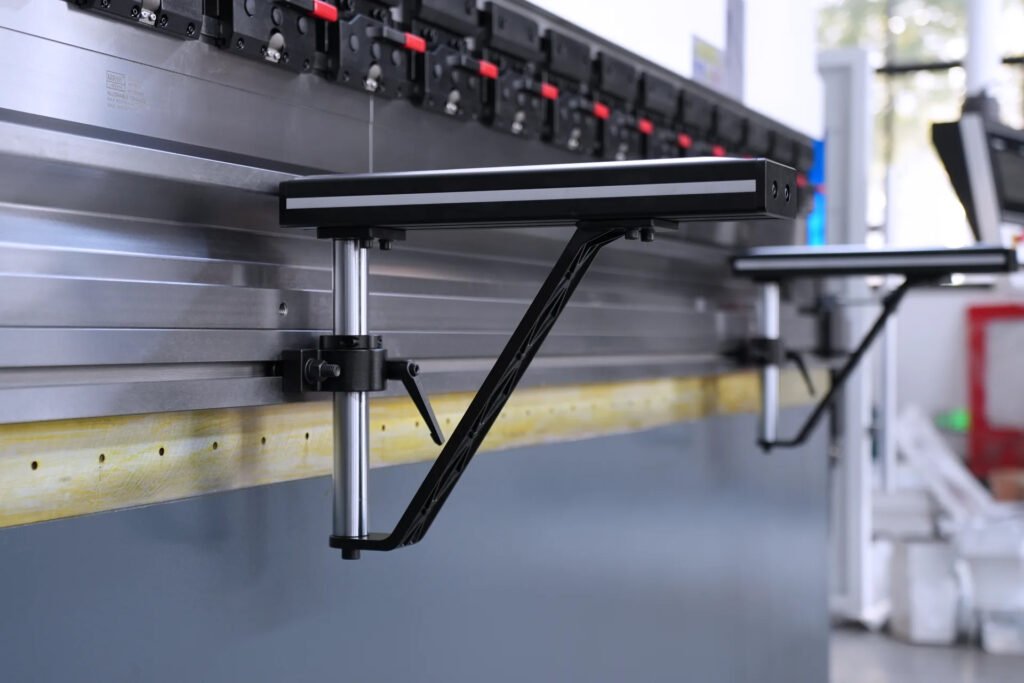

Movable front support frame
Beam
The movable front support frame travels smoothly along the linear guide rail and can be positioned wherever needed, providing practical support during bending work and improving operator comfort and efficiency for press brake machines in Bangladesh.

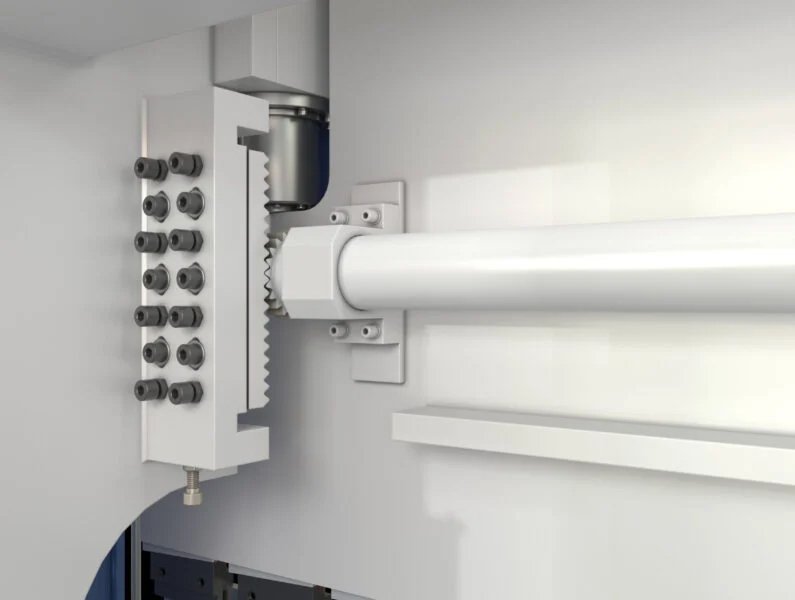

Gear and rack synchronization
Motor
The high-quality gear and rack synchronization structure provides strong construction and stable performance during bending operations. It supports dependable synchronized movement, making it an important component for industrial press brake machines used.

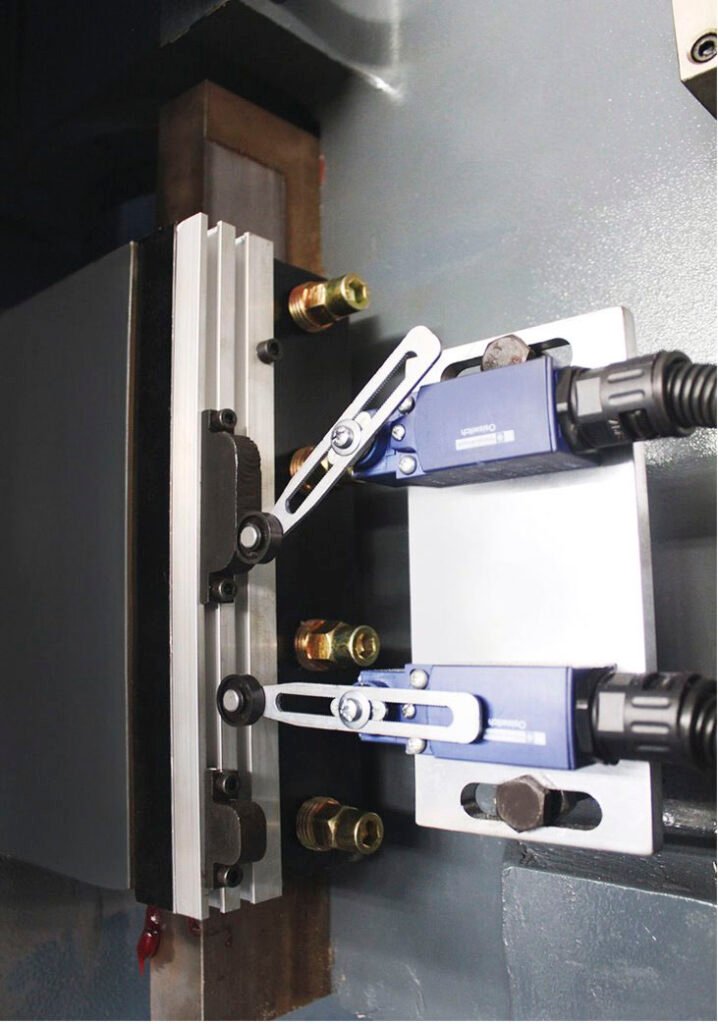

Limit switch
Rack
The branded limit switch offers high-frequency response and a low failure rate, helping the machine operate more quickly and smoothly. It supports reliable position control for press brake machines used in Bangladesh’s metal fabrication industry. Best Press Brake Machine in Bangladesh

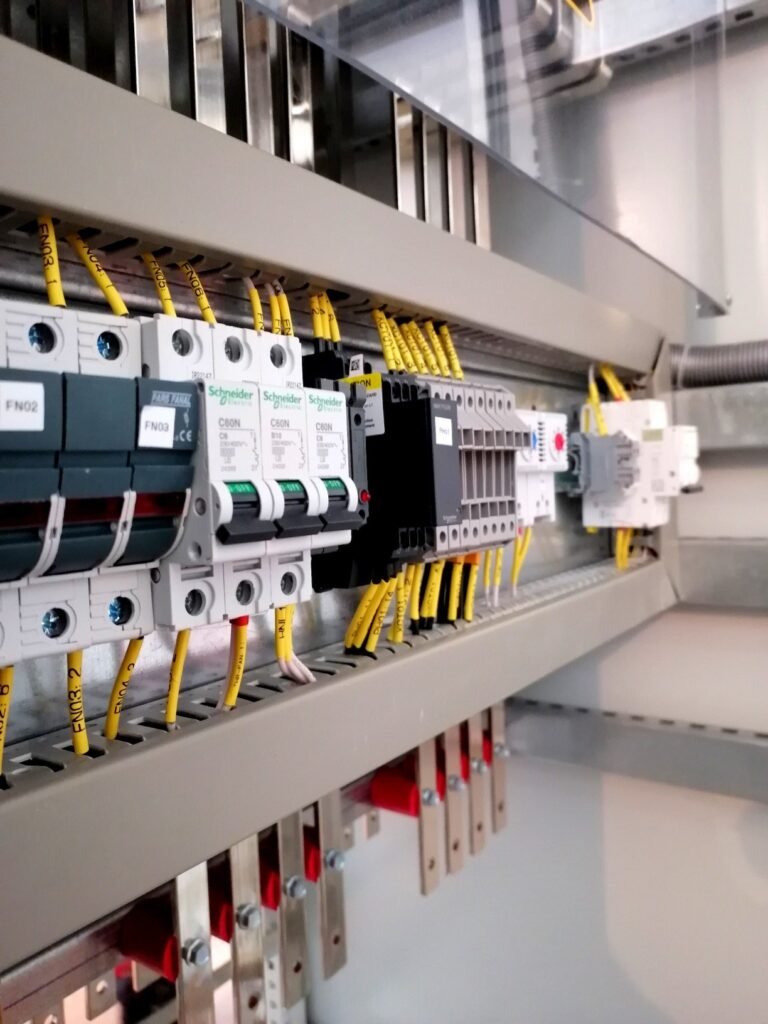

Schneider Electric components
Reducer
Schneider Electric components are selected for the electrical system and comply with relevant DIN and ISO standards. These recognized components support safe and dependable electrical operation for industrial press brake machines supplied in Bangladesh.

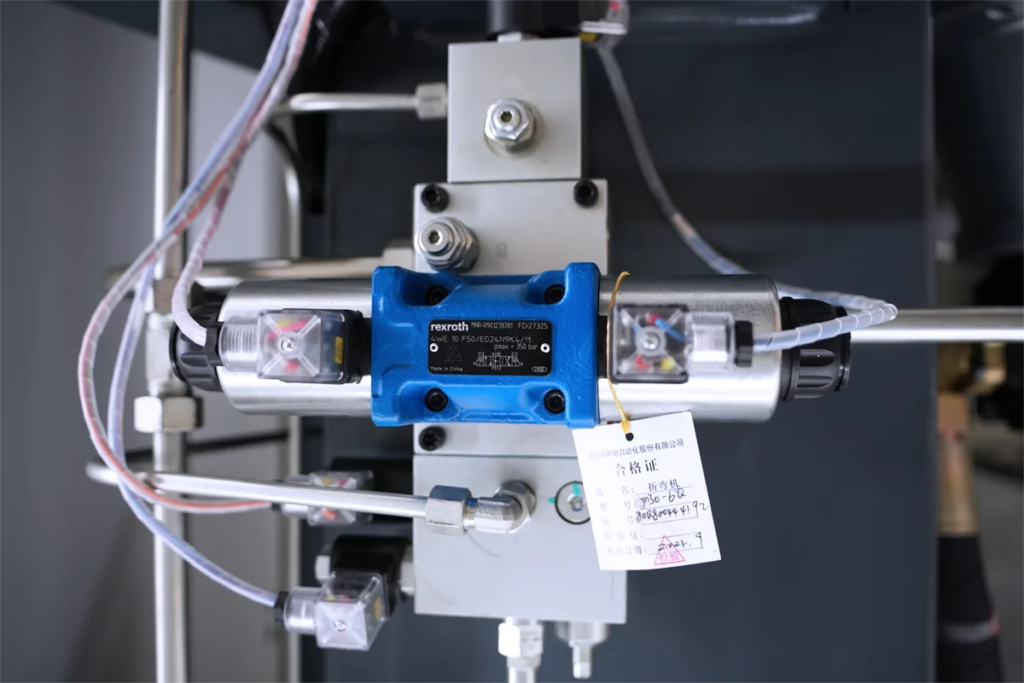

Hydraulic valve group
Guide Rail
The Bosch Rexroth integrated hydraulic valve group features a compact hydraulic system structure designed to provide stable and reliable performance. It supports dependable hydraulic operation for press brake machines serving metal fabrication businesses in Bangladesh.
High-precision oil cylinder
CNC System
The high-precision oil cylinder uses a high-quality domestic cylinder together with a Japanese NOK oil seal. This combination supports dependable hydraulic operation and controlled machine movement for industrial press brake applications in Bangladesh.
CNC - System
Haden Machine supplies advanced Sheet Metal Press Brake Machine in Bangladesh, manufactured in China with reliable core components and proven CNC technology. Each press brake is designed for precise bending, stable performance, high productivity, and long-term industrial use, with local delivery, installation, technical support, and after-sales service across Bangladesh.
CNC System (Optional)
Estun E21
- Back stopper positioning control, intelligent positioning function;
- One-way and two-way positioning function, effectively eliminate screw clearance;
- Back-up and escape function, automatic search reference point function;
- One-button parameter backup and recovery function,fast position teaching function;
- 40 multi-step program storage space, each program has 25 steps;
- Power-off protection function;
CNC System (Optional)

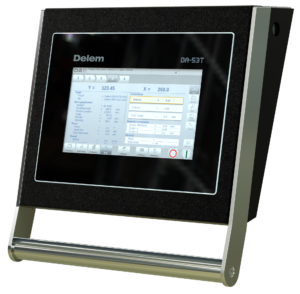

DA-53T - DELEM
- Standard 4+1 axis control
- Menu-driven parameter programming
- 10.4″ true color TFT LCD display
- Working table deflection compensation control
- Tooling library
- USB interface
- Advanced Y-axis control algorithm, capable of controlling both closed-loop and open-loop valves
- Built-in control valve amplifier
- PLC
- Analysis software
CNC System (Optional)

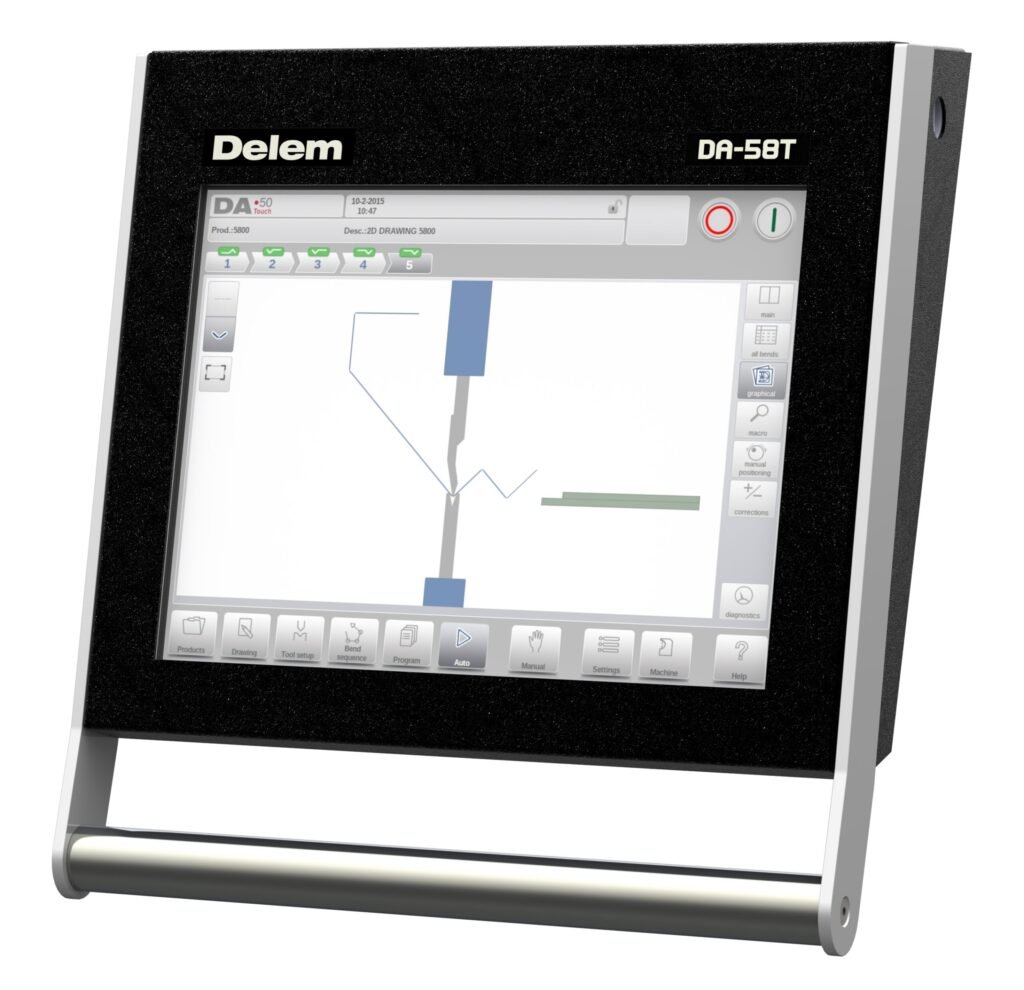

DA-58T - DELEM
- 2D touch graphical programming
- 15″ high-resolution true color TFT display
- Bending process calculation
- Deflection compensation control
- Servo and inverter control modes
- Advanced Y-axis control algorithm, capable of controlling both closed-loop and open-loop valves
- USB interface
CNC System (Optional)

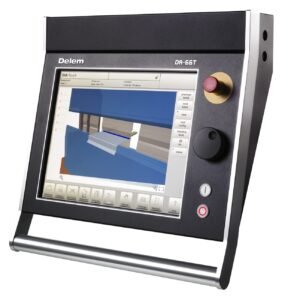

DA-66T - DELEM
- 2D graphical touch screen programming mode
- 3D product graphical simulation display
- 17″ high-resolution true color TFT display
- Complete Windows application package
- Compatible with Delem modular structure system
- USB, peripheral interface
- User program application in a multitasking environment
- Angle detection sensor interface
- Open system architecture
CNC System (Optional)

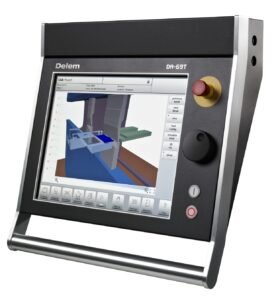

DA-69T - DELEM
- 2D and 3D graphical touch screen programming mode
- 3D product graphical simulation display
- 17″ high-resolution true color TFT display
- Complete Windows application package
- Compatible with Delem modular structure system
- USB, peripheral interface
- User program application in a multitasking environment
- Angle detection sensor interface
- Open system architecture
CNC System (Optional)

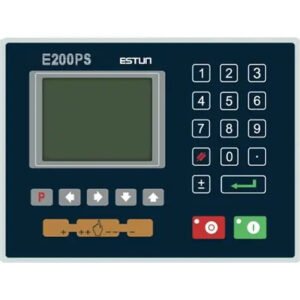

ES200PS
- Backgauge control
- Control for standard AC motors and frequency inverters
- Intelligent positioning
- Dual programmable digital output
- Workpiece counter
- Program memory for up to 40 programs
- Up to 25 steps per program
- Single-side positioning, retract function
- One-key backup and restore of parameters
- Metric/Imperial units, Chinese/English language options
CNC System (Optional)
ESA-S630 (ltaly ESA)
- Monochrome 5.7″ LCD display (320×240 pixels)
- Real-time automatic check, form-based programming mode, automatically calculating bending and compensation force.
- 2D graphical editing for upper and lower dies, graphical preview of workpieces.
- All programs, dies, and parameters can be saved in local memory or on a USB drive.
- Provides programming functions for control axes and other auxiliary functions.
- Controls 3-4 axes.
CNC System (Optional)
ESA-S640(ltaly ESA)
- 15-inch touchscreen control
- Supports up to six-axis control
- Automatic bending process calculation
- Supports automatic compensation control
- Supports the installation of angle measurement devices
CNC System (Optional)

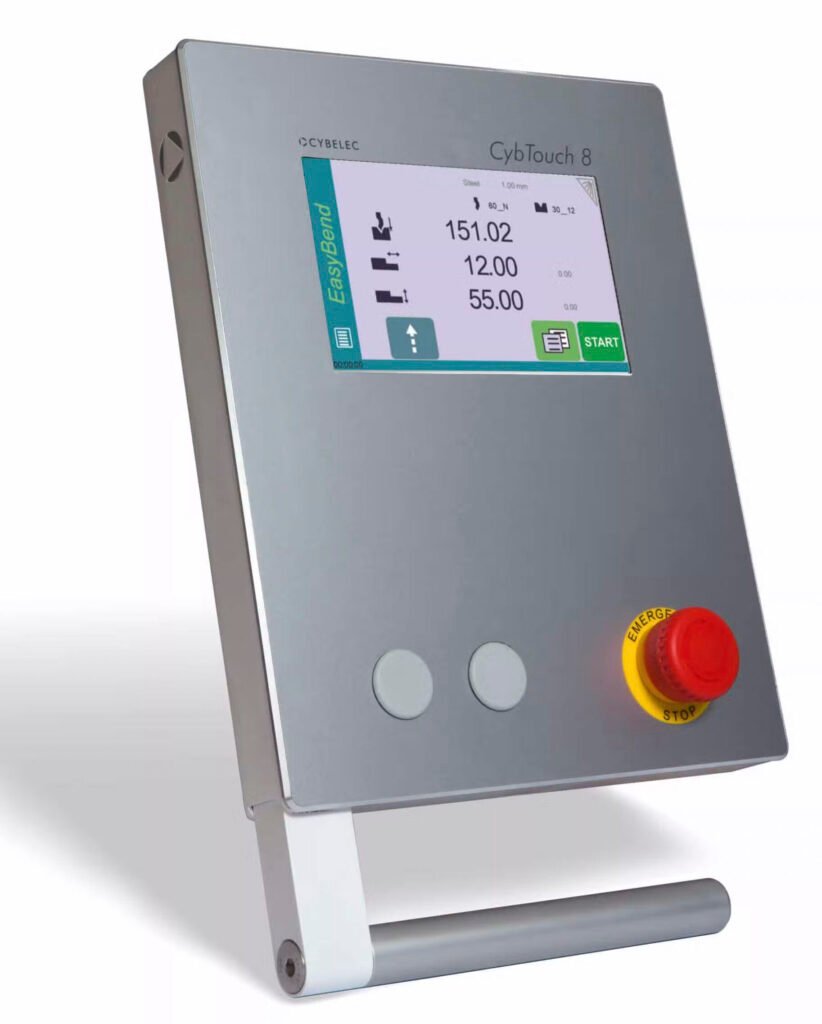

CybTouch 8 (Swiss CT8)
- “8” color LCD display with touchscreen and icon recognition.
- “EasyBend” page for straightforward single bending operations.
- Highly efficient bending programming to meet mass production demands.
- Automatically calculates bending angle, main pressure, and deflection compensation.
- Automated calculation of bending data.
- Automatic calculation of pressure and deflection compensation; automatic calculation of upper die depth.
- Angle and back gauge correction.
CNC System (Optional)
CybTouch 12 (Swiss CT12)
- “12” color LCD display with touchscreen and icon recognition.
- “EasyBend” page for straightforward single bending operations.
- Highly efficient bending programming to meet mass production demands.
- Automatically calculates bending angle, main pressure, and deflection compensation.
- Automated calculation of bending data.
- Automatic calculation of pressure and deflection compensation, and automatic calculation of upper die depth.
- Angle, rear gauge correction, and 2D graphics programming.
- Automatically simulates the bending sequence and provides the optimal bending solution (optional).
Need a Reliable Press Brake Machine for Your Factory?
Looking to buy a press brake machine in Bangladesh? Our machines are manufactured in China and supplied through our Bangladesh office. Tell our expert consultants about your sheet thickness, bending requirements, production capacity and preferred specifications. We will help you select the right machine configuration, arrange production in China, and support delivery through our local Bangladesh team.
