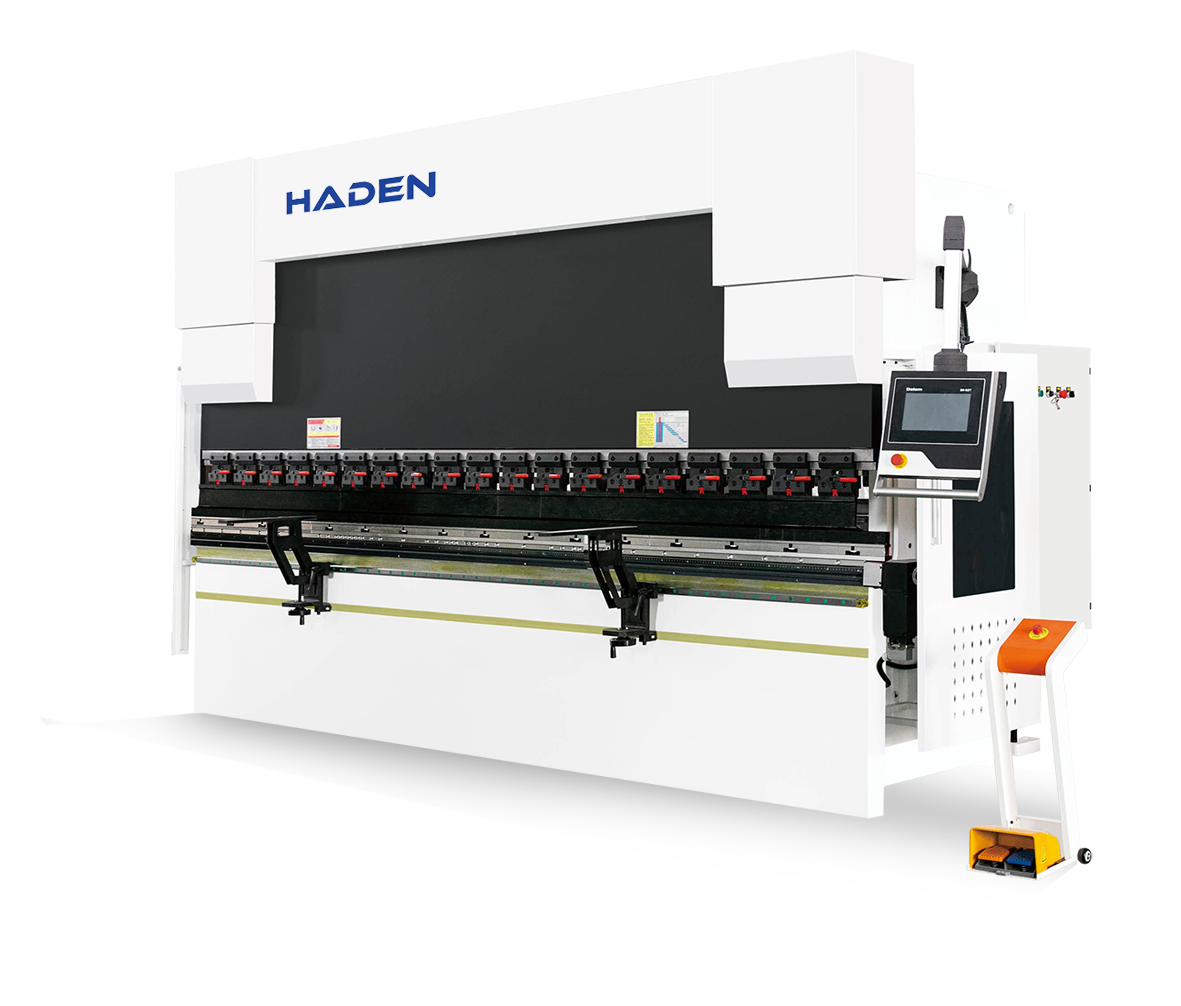

NC Torsion Bar Synchronous Press Brake
FEATURES
- The main unit adopts the WC67Y series hydraulic sheet metal bending machine mechanism.
- High precision, high efficiency torsion shaft synchronous CNC bending machine.
- All-steel plate welding machine structure.
- Mechanical torsion shaft synchronous control for left and right balance.
- Back gauge equipped with high performance servo motor and drive.
- Precision ball screws and linear guides are standard equipment.
STANDARD CONFIGURATION
Laser protection devices can effectively ensure the personal safety of operators.
Safety Devices-DSP
Safety Devices-DSP AP+MCS
Safety Devices-MSD
Backgauge Servo Motor
Hydraulic System
Backgauge
OPTIONAL CONTROLLERS
TP10S
- 10 inch high-definition color touchscreen
- Menu-driven programming interface
- Equipped with servo motor
- CANopen bus control eliminates interference positioning errors
- Automatic calculation of sheet metal bending depth
- Slider & Back gauge position control
- Pressure holding time setting
- 20 programs, each with 20 steps
CYBTOUCH8 (Swiss CT8)
- 8 inch color LCD touchscreen with icon recognition
- EasyBend page for easy single-bending
- Efficient bending programming for mass production
- Auto calculation of bending angle, principal pressure & deflection compensation
- Auto calculation of bending data
- Auto calculation of pressure, deflection compensation & upper mold depth
- Angle & back gauge correction
DA58T (Netherlands DELEM Company)
- Touch operation support; with graphical programming & 3D simulation
- Multi-axis high-precision control + automatic convexity compensation
- Automatic bending program generation; integrated collision detection
- Industrial-grade hardware for high stability
- External device connectivity; ERP/MES integration; strong scalability
- Energy-saving design with low-noise operation
DA53T (Netherlands DELEM Company)
- Equipped with a 10.1 inch high resolution TFT color display
- Standard Profile-53 TL offline programming software: programs complex workpieces on PC
- Supports servo motor and frequency converter control function
- Supports multi-machine linkage function
- Panel mounting (suspended type optional), compact size
WC67Y/K SeriesTechnical Specifications
| Model | Nominal Pressure | Worktable Length | Column Spacing | Throat Depth | Slider Stroke | Max Height | Main Motor Power | Dimension |
|---|---|---|---|---|---|---|---|---|
| WC67Y/K-40T/2200 | 400 | 2200 | 1870 | 230 | 100 | 320 | 4 | 2200×1200×1900 |
| WC67Y/K-40T/2500 | 400 | 2500 | 1960 | 230 | 100 | 320 | 4 | 2500×1200×1900 |
| WC67Y/K-50T/2500 | 500 | 2500 | 1960 | 230 | 100 | 320 | 5.5 | 2500×1200×2000 |
| WC67Y/K-63T/2500 | 630 | 2500 | 1960 | 250 | 120 | 320 | 5.5 | 2500×1300×2210 |
| WC67Y/K-63T/3200 | 630 | 3200 | 2600 | 250 | 120 | 320 | 5.5 | 3200×1300×2210 |
| WC67Y/K-80T/2500 | 800 | 2500 | 1960 | 300 | 120 | 320 | 7.5 | 2500×1400×2300 |
| WC67Y/K-80T/3200 | 800 | 3200 | 2600 | 320 | 120 | 350 | 7.5 | 3200×1500×2300 |
| WC67Y/K-80T/4000 | 800 | 4000 | 3160 | 320 | 120 | 350 | 7.5 | 4000×1500×2400 |
| WC67Y/K-100T/2500 | 1000 | 2500 | 1960 | 320 | 140 | 350 | 7.5 | 2500×1600×2400 |
| WC67Y/K-100T/3200 | 1000 | 3200 | 2600 | 320 | 140 | 400 | 7.5 | 3200×1600×2600 |
| WC67Y/K-100T/4000 | 1000 | 4000 | 3160 | 320 | 140 | 400 | 7.5 | 4000×1600×2600 |
| WC67Y/K-125T/3200 | 1250 | 3200 | 2600 | 320 | 140 | 400 | 11 | 3200×1600×2600 |
| WC67Y/K-125T/4000 | 1250 | 4000 | 3160 | 320 | 140 | 400 | 11 | 4000×1600×2600 |
| WC67Y/K-160T/3200 | 1600 | 3200 | 2600 | 320 | 190 | 460 | 11 | 3200×1700×2700 |
| WC67Y/K-160T/4000 | 1600 | 4000 | 3160 | 320 | 190 | 460 | 11 | 4000×1700×2800 |
| WC67Y/K-160T/5000 | 1600 | 5000 | 4060 | 320 | 190 | 460 | 11 | 5000×1900×3100 |
| WC67Y/K-160T/6000 | 1600 | 6000 | 4850 | 320 | 190 | 460 | 11 | 6300×1900×3200 |
| WC67Y/K-200T/3200 | 2000 | 3200 | 2600 | 320 | 190 | 460 | 15 | 3200×1950×2800 |
| WC67Y/K-200T/4000 | 2000 | 4000 | 3160 | 320 | 190 | 460 | 15 | 4000×1950×2800 |
| WC67Y/K-200T/5000 | 2000 | 5000 | 4060 | 320 | 190 | 460 | 15 | 5000×1950×3000 |
| WC67Y/K-200T/6000 | 2000 | 6000 | 4850 | 320 | 190 | 460 | 15 | 6000×1950×3300 |
| WC67Y/K-250T/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 18.5 | 3250×2000×3200 |
| WC67Y/K-250T/4000 | 2500 | 4000 | 3160 | 400 | 250 | 590 | 18.5 | 4000×2000×3400 |
| WC67Y/K-250T/5000 | 2500 | 5000 | 4060 | 400 | 250 | 590 | 18.5 | 5000×2000×3400 |
| WC67Y/K-250T/6000 | 2500 | 6000 | 4850 | 400 | 250 | 590 | 18.5 | 6000×2000×3400 |
| WC67Y/K-300T/3200 | 3000 | 3200 | 2600 | 400 | 250 | 590 | 22 | 3200×2000×3450 |
| WC67Y/K-300T/4000 | 3000 | 4000 | 3160 | 400 | 250 | 590 | 22 | 4000×2000×3450 |
| WC67Y/K-300T/5000 | 3000 | 5000 | 4060 | 400 | 250 | 590 | 22 | 5000×2000×3450 |
| WC67Y/K-300T/6000 | 3000 | 6000 | 4850 | 400 | 250 | 590 | 22 | 6000×2000×3450 |
| WC67Y/K-400T/3200 | 4000 | 3200 | 2600 | 400 | 250 | 590 | 30 | 3200×2180×3400 |
| WC67Y/K-400T/4000 | 4000 | 4000 | 3160 | 400 | 250 | 590 | 30 | 4000×2180×3400 |
| WC67Y/K-400T/5000 | 4000 | 5000 | 4060 | 400 | 250 | 590 | 30 | 5000×2180×3500 |
| WC67Y/K-400T/6000 | 4000 | 6000 | 4850 | 400 | 250 | 590 | 30 | 6000×2180×3800 |
| WC67Y/K-500T/5000 | 5000 | 5000 | 4060 | 400 | 300 | 590 | 37 | 5050×3500×3700 |
| WC67Y/K-500T/6000 | 5000 | 6000 | 4850 | 400 | 300 | 590 | 37 | 6050×3500×3700 |
| WC67Y/K-600T/4000 | 6000 | 4000 | 3160 | 400 | 300 | 590 | 45 | 4050×4500×3700 |
| WC67Y/K-600T/6000 | 6000 | 6000 | 4850 | 400 | 300 | 590 | 45 | 6050×4500×3700 |
