Description

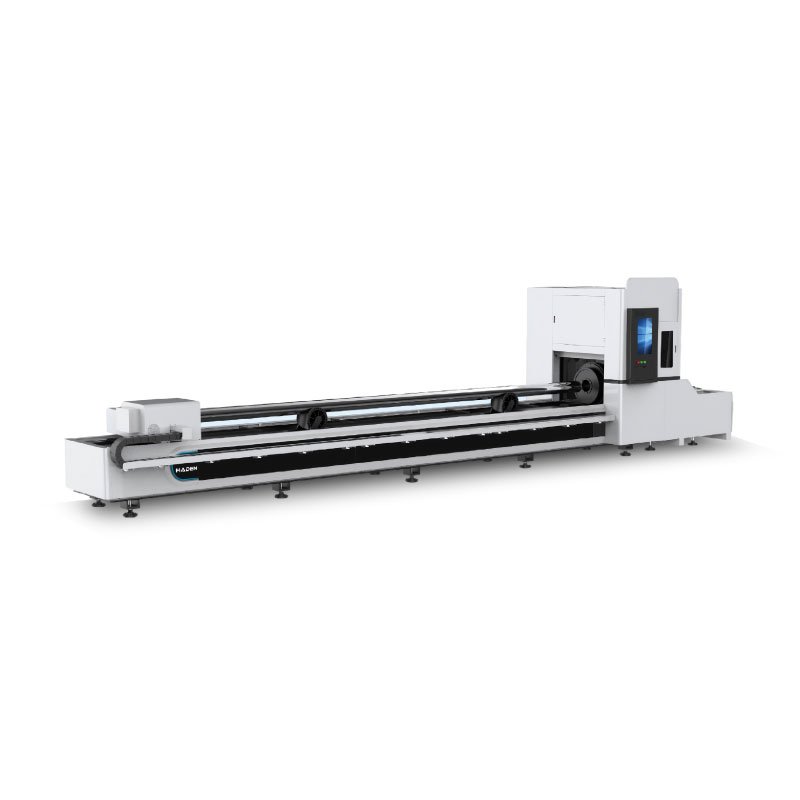

Haden Dual-Chuck Fiber Laser Pipe and Tubing Cutting Machine is built to provide high-speed and precise processing on metal tubes and structural sections. Using fiber laser and dual pneumatic chucks together with CNC control system, the machine ensures excellent and stable cutting results of round, square, rectangular and special-shaped metal pipes and tubes.
Provided in 1500W-6000W power options, the machine is intended for those manufacturers who are interested in increasing their production without decreasing cutting precision. Dual-clamp device helps to keep long workpieces stable when rotating and feeding, while flying cutting, anti-empty cutting and bevel cutting ensure shorter processing period and no wasteful cutting of materials.
Main Features of Dual-Chuck Laser Tube Cutting Machine
Dual Pneumatic Chuck System
The automatic front and rear chucks hold the workpiece in place, allowing reliable clamping and centering during fast rotation and cutting processes.
This feature assists in reducing tube vibrations, ensuring precise positioning and good quality of cuts, especially during the processing of long tubes and profiles.
Processing up to 6.5 Meters
A maximum tube length of 6,500 mm makes the machine suitable for different industrial tube fabrication needs.
Supporting rollers for different diameter allow the workpiece to remain steady when being fed into the machine, and when rotated.
1500W–6000W Laser Power
The machine allows a variety of laser power, from 1500W up to 6000W.
Depending on the metal tube material type, wall thickness and production needs. The machine is capable of processing carbon steel, stainless steel, aluminium alloy and other metal tubes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Dual-Chuck Laser Tube Cutting Machine |
| Laser Power | 1500W–6000W |
| Maximum Processing Length | ≤6500 mm |
| Maximum Rotation Speed | Up to 200 r/min depending on configuration |
| Standard High-Load Rotation Speed | Up to 120 r/min depending on configuration |
| Maximum Operating Acceleration | 1.0G |
| Maximum Single Load | 260 kg |
| Maximum Linear Load | ≤43 kg/m |
| Minimum Material Wall Thickness | ≥0.8 mm |
| Tail Material | ≥80 mm |
| Processing Profiles | Round, Square, Rectangular & Special-Shaped Tubes |
| Structural Profile Processing | Up to H-Beam ≤20# depending on configuration |
| Chuck System | Dual Pneumatic Chuck |
| Bevel Cutting | Optional |
| Flying Cutting | Supported |
| Anti-Empty Cutting | Supported |
Materials Suitable for Processing
The Harden Dual-Chuck Laser Tube Cutting Machine is suitable for processing common industrial metals including carbon steel, stainless steel and aluminium alloy tubes.
Different laser power configurations can be selected based on the required tube size, wall thickness and production volume.
Applications
The machine is an excellent choice for manufacturers working in steel structures, automotive components, machinery manufacturing, construction hardware, metal furniture, elevators, fitness equipment, agricultural machinery, electrical enclosures, kitchen equipment, lighting products, display systems, signage and general metal fabrication.
Its ability to process several tube shapes on a single platform makes it especially valuable for job shops and factories handling diversified orders.
Why Choose the Harden Dual-Chuck Laser Tube Cutting Machine?
- Higher Production Efficiency: Intelligent path optimization, flying cutting and high-speed tube rotation help shorten processing cycles and increase daily output.
- Stable Dual-Chuck Clamping: Two pneumatic chucks provide dependable workpiece support, improving stability and accuracy when processing long tubes.
- Flexible Tube Processing: Process round, square, rectangular and special-shaped tubes as well as structural profiles on one machine.
- Expandable Automation: Choose manual, semi-automatic or automated loading and unloading solutions according to your production volume.
- Optional Bevel Cutting: Prepare complex welding joints directly on the laser cutting machine and reduce secondary processing.
- Designed for Industrial Production: A rigid machine bed, intelligent control system and protected chuck structure provide dependable performance for continuous manufacturing.
