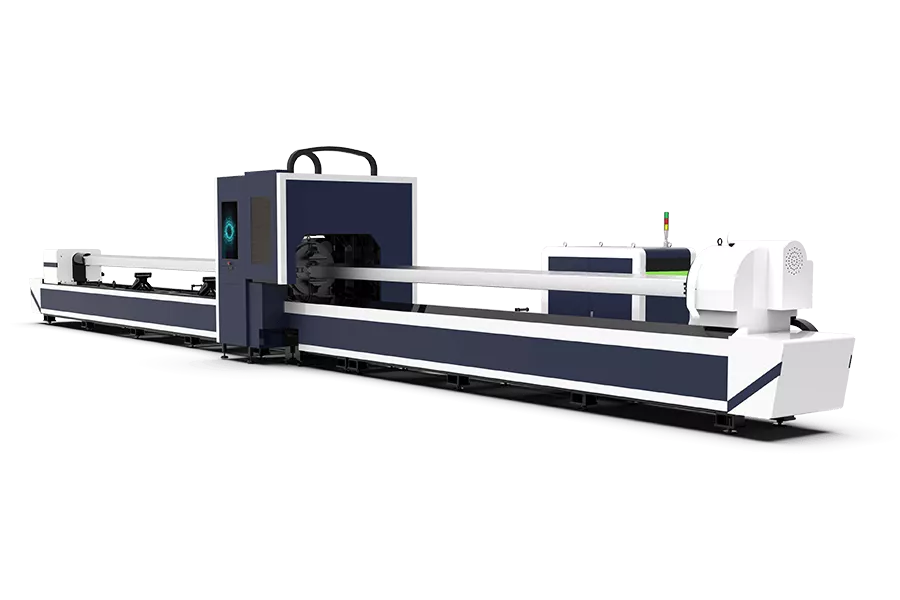

Triple-Chuck Laser Tube Cutting Machine Bangladesh

Description

High-Precision Triple-Chuck Tube Cutting Technology

The Triple-Chuck Laser Tube Cutting Machine offers better control and stability than traditional tube cutting machines. With three separately located chucks, which can clamp and support the tube throughout the entire process of cutting, the Triple-Chuck Laser Tube Cutting Machine is ideally suited to cut long and slender tubes. The automated centering mechanism minimizes the setup time, and the adjustable clamping force makes the machine able to process tubes of varying wall thickness. The reference machine also makes use of segmented automated support that minimizes deformation and vibration when cutting long tubes.

Reduce Material Waste and Improve Productivity

Triple-chucking enables minimizing the amount of unused tail material. Proper fixing of the workpiece is beneficial for achieving higher precision of cutting. Using fiber laser technology, the machine will be able to create surfaces that do not require any extra processing and therefore help manufacturers increase their efficiency.

Suitable for Different Tube Shapes

The machine is suitable for processing:

Round tubes
Square tubes
Rectangular tubes
Oval and waist shaped tubes
D-shaped tubes
Special shaped metal profiles

Depending on the selected configuration, it supports tube cutting, hole cutting, contour cutting, hollowing and bevel cutting.

Key Features

Triple-Chuck Clamping System
Provides stable support for long and slender tubes while improving cutting accuracy and reducing material waste.

Automatic Centering
Automatically positions and clamps the workpiece, helping reduce manual adjustment and setup time.

Automatic Tube Support
Segmented support helps prevent long tubes from sagging or vibrating during processing.

Intelligent Profile Recognition
Recognizes different tube shapes for efficient processing of standard and special profiles.

High Cutting Accuracy
Stable motion control and precision positioning provide consistent results for industrial tube processing.

Heavy-Duty Welded Machine Bed
A reinforced welded structure provides rigidity and long-term stability during high-speed operation.

Applications

The Haden Triple-Chuck Laser Tube Cutting Machine is suitable for: Metal fabrication, structural steel, machinery manufacturing, automotive components, metal furniture, construction, railings, fitness equipment, agricultural machinery, pipe processing and customized metal products.

Technical Specifications

Specification	Configuration
Machine Type	Triple-Chuck Fiber Laser Tube Cutting Machine
Minimum Round Tube	Φ15 mm
Minimum Square Tube	15 × 15 mm
Maximum Round Tube	Φ230 mm
Maximum Square Tube	160 × 160 mm
Laser Power	1500W / 2000W / 3000W / Higher Power
Maximum Acceleration	Up to 1G
Positioning Accuracy	±0.03 mm
Power Supply	380V, 3 Phase, 50/60Hz
Optional Equipment	Smoke Purifier, Air Compressor, Voltage Regulator, Air Conditioner, Safety Light Curtain

These figures follow the technical configuration of the reference product you provided.

Why Choose Haden Triple-Chuck Laser Tube Cutting Machine?

Haden provides complete laser cutting solutions for customers in Bangladesh, from machine selection and configuration to delivery, technical consultation and after-sales support. This helps ensure you invest in the right machine for your actual production needs instead of purchasing unnecessary capacity.
