Description

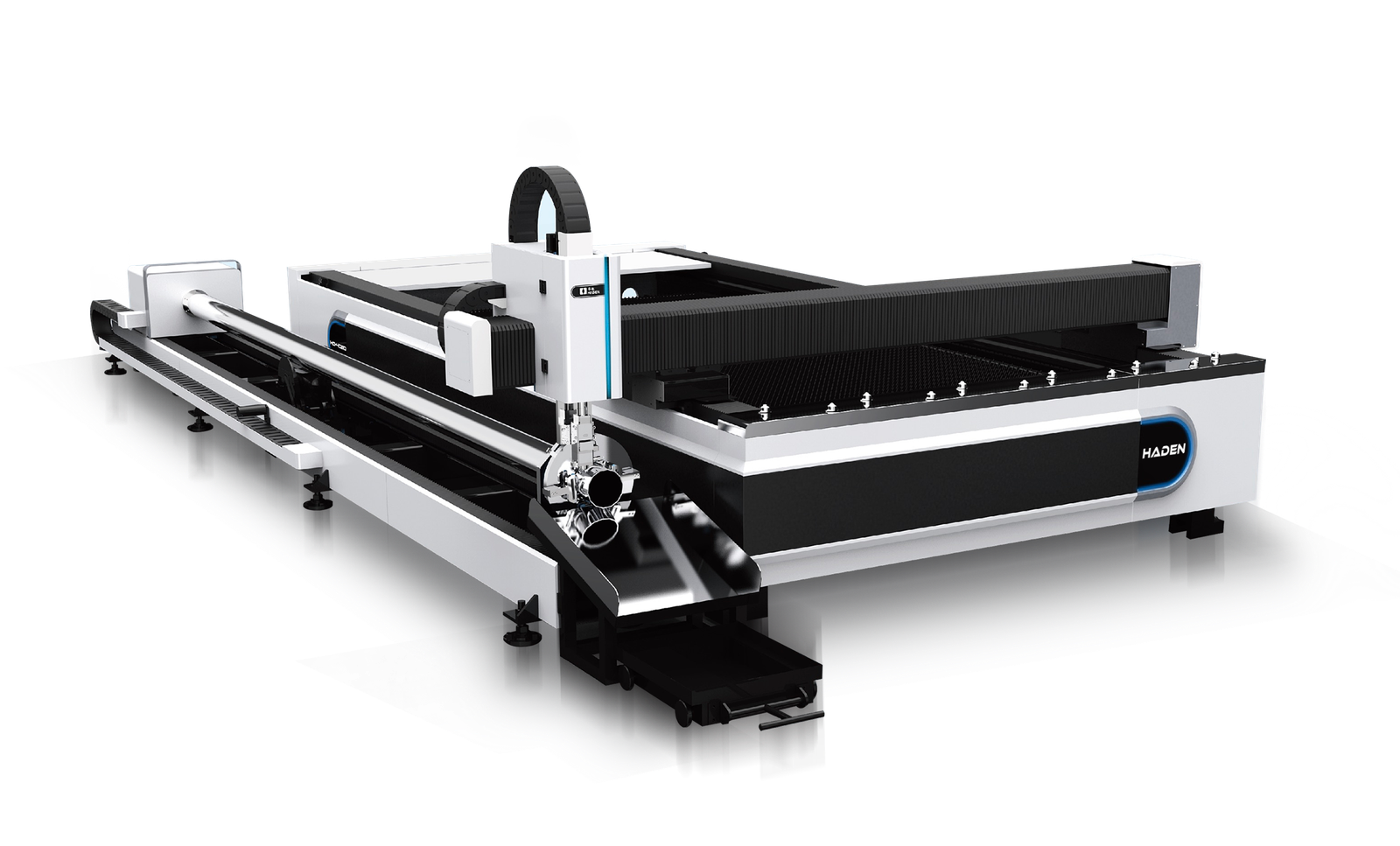

Sheet-and-Tube Integrated Fiber Laser Cutting Machine
FEATURES
Integrated cutting of tubes and sheets, convenient for interchange, not only capable of cutting flat sheets, but also meeting users demands for round tube and square tube cutting, as well as opening processing for formed box bodies.
Application Industry
Due to its integrated sheet-and-tube design, the industry adaptability of the HD-T2 Series has been greatly enhanced. It includes mechanical processing mainly involving tubes, such as petroleum pipes and fitness equipment, as well as mechanical processing mainly involving sheets, such as automobile manufacturing, chassis and cabinets.
Integrated design of the sheet & tube, HD-T2 Series adaptability has expanded enormously in the industry, including oil pipe material, fitness equipment and pipe of mechanical processing, automobile manufacturing, chassis cabinets and other sheet machining and so on.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Power | 1000W–15000W |
| Tube Length | 3000mm / 6000mm |
| Cutting Thickness | 6mm–12mm |
| Round Tube Dia | φ20–φ220mm |
| Square Tube Side | □14mm–□160mm |
| Positioning Accuracy | ±0.03mm/m |
| Repeatability | ±0.02mm/m |
| Power Supply | AC 380V/50HZ |
| Cooling | Hydrocooling |
| Operating Temp | 0℃–40℃ |
| Optional Format | 3000 × 1500mm |
