Description

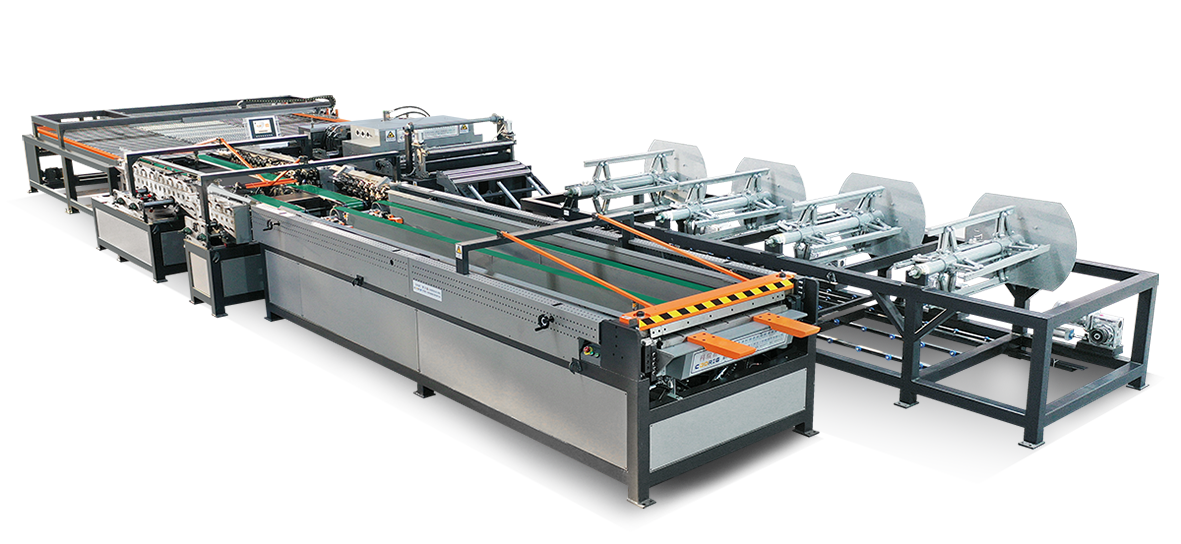

U Shape Super Duct Line 5
PERFORMANCE FEATURES / FEATURES
It mainly completes the forming of common plate flanges, angle steel flanges, or C-shaped flanges. The daily processing capacity is 1,000 to 2,500 square meters. For air ducts, only the dimensions need to be entered, and the production line automatically completes uncoiling, leveling, rib pressing, corner punching, shearing, combined seaming, common plate flange forming, angle steel flange forming or C-shaped flange forming, and square folding forming.
It is mainly used to complete the forming of common plate flanges and angle steel flanges or C shaped flanges. The daily processing capacity is 1000 to 2500 square meters. For air ducts, just input the dimensions, and the production line will automatically complete uncoiling, leveling, rib pressing, corner punching, shearing, combined seaming, the forming of common plate flanges and angle steel flanges or C shaped flanges, and square folding forming.
Basic Configuration
| No. | Basic Configuration |
|---|---|
| 1 | Electric Coil Cradles,Material Trays |
| 2 | Rack |
| 3 | Host |
| 4 | Stainless Steel Roller Conveyer Platforms |
| 5 | Fixed Joint Locking Machine |
| 6 | Duplex TDF Flange Forming Machine |
| 7 | Duplex Angle Steel Flange Forming Machine |
| 8 | Servo Feeding Platform |
| 9 | Hydraulic Folding Machine |
| 10 | Computer Controlling System |
Main Technical Parameters
| Model | Sheet Thicknes | Max Width | Max Workingspeed | Coiler Weight | Dimensions | Power | Weight |
|---|---|---|---|---|---|---|---|
| SADL-5-1250 | 0.5-1.2 | 1250 | 15 | 7 | 26000×3500×1500 | 30 | 12 |
| SADL-5-1500 | 0.5-1.2 | 1500 | 15 | 7 | 26000×4000×1500 | 30 | 13 |
