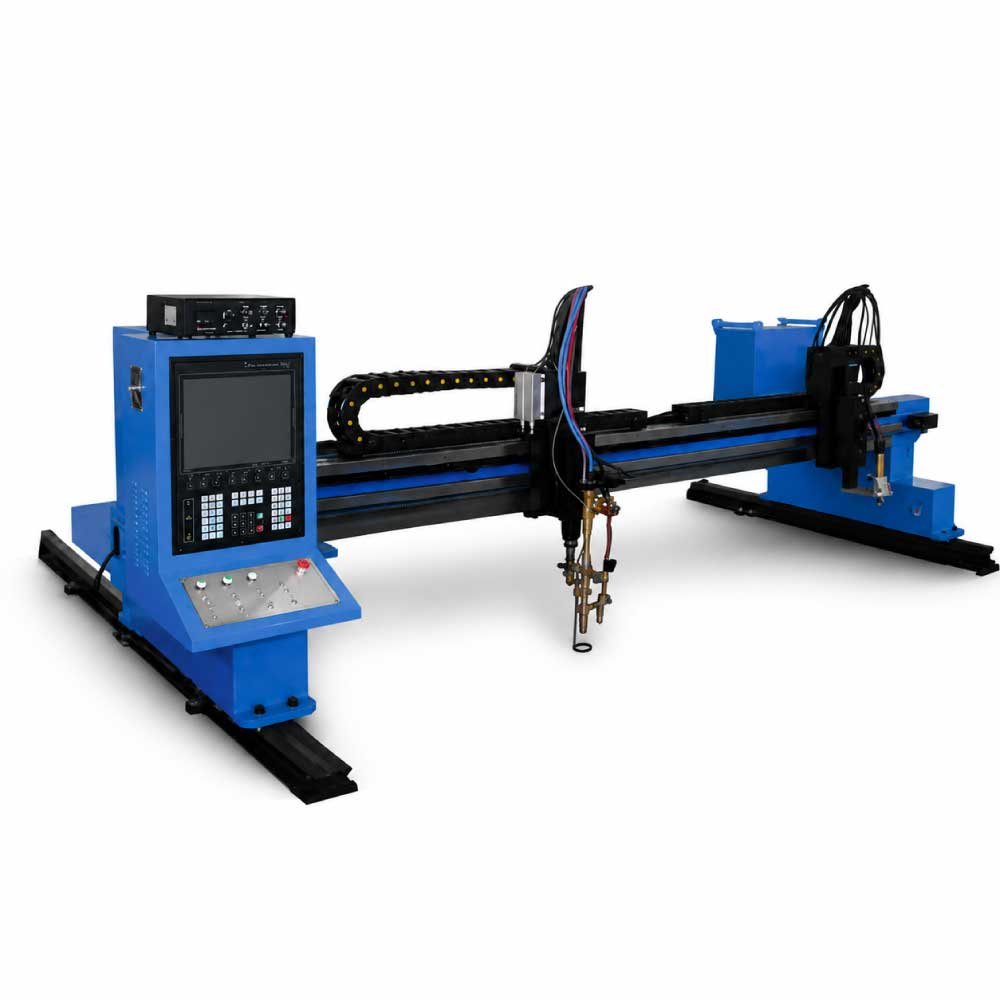

CNC Gantry Plasma & Flame Cutting Machine
FEATURES
This cutting machine is widely used for cutting various metal plates and geometric shapes. It features a stable gantry structure with bilateral drive, high automation, fast cutting speed, and excellent results. The machine supports both flame and plasma cutting, comes with automatic nesting software, offers simple operation, and has a low failure rate. The number of torches can be customized, with plasma cutting handling 1–80mm and flame cutting 5–400mm materials, further enhanced by a double lifting device and automatic arc pressure height adjustment.
| Item | Parameter |
|---|---|
| Equipment Structure | Gantry Structure |
| Gauge | 3000–8000, According to user requirements |
| Rail Length | Can be extended according to user requirements (2m/knot) |
| Effective Cutting Width | Gauge minus 800 (two torches) |
| Effective Cutting Length | Rail minus 2000 |
| Flame Cutting Thickness | 5–200, According to user requirements |
| Plasma Cutting Thickness | 1–60, It depends on plasma power |
| Number Of Flame Cutting Torch Groups | 1, Increase or decrease according to user demand |
| Number Of Plasma Torch Groups | 1, Increase or decrease according to user demand |
| Cutting Mode | Flame gas cutting (propane), plasma air/Ar/H2/H35/F20/H2O |
| Drive Motor | Precision step motor (Optional: Panasonic servo/Domestic servo) |
| Reduction Gear | Planetary reducer (optional: German Group Carter/Shanghai bitpass) |
| Guide | 24, (Optional: 36/84) |
| CNC System | F2300B from Shanghai (Optional: SF-2200W/F2300B/Hypertherm) |
| Plasma Power | Famous brand/USA Hypertherm/USA Thermal Dynamics (According to user needs) |
| Nesting Software | StarCam |
| Ignition Function | Automatic ignition |
| Cutting Torch Lifting Range | 200 |
| Height Regulator | Electric flame increase/plasma arc voltage increase (Optional: Flame capacitance) |
